roduct INTRODUCTION

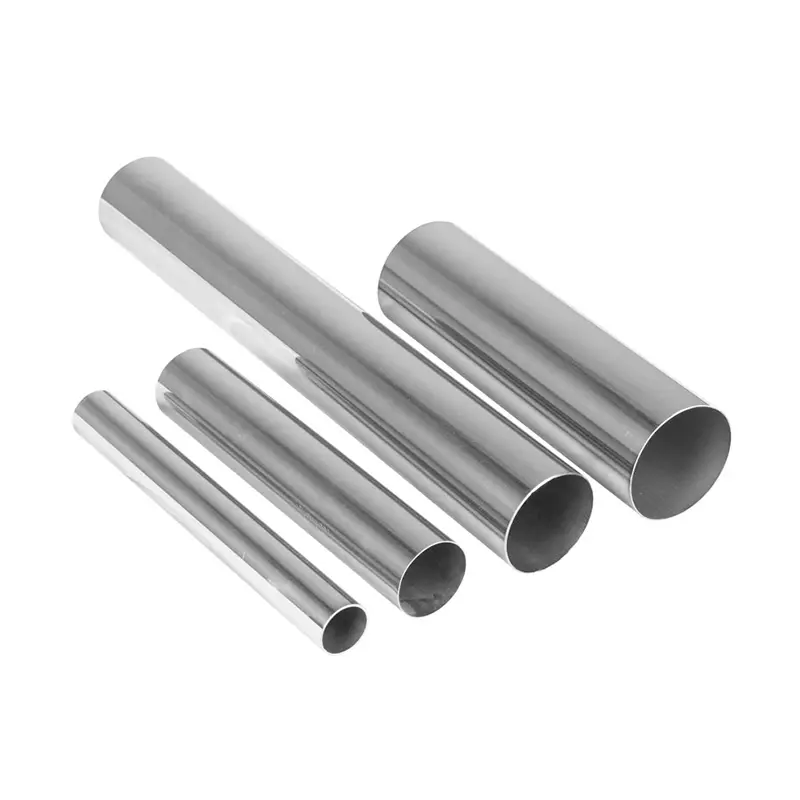

AISI 410 Stainless Steel Pipe / Tube is a martensitic stainless steel product that combines high strength, moderate corrosion resistance, and good machinability. With 11.5–13.5% chromium and a carbon content of 0.15%, 410 stainless steel can be heat-treated to achieve higher hardness and toughness, while maintaining excellent wear resistance.
It is widely used in pipeline transport, boilers, oil & gas drilling, hydraulic systems, and automotive parts, especially in environments exposed to atmosphere, steam, water, and oxidizing acids.
PRODUCT SPECIFICATIONS
| Name |
AISI 410 Stainless Steel Pipe / Tube |
| Grades Available |
304, 304L, 316, 316L, 317L, 321, 347H, 310S, S31803, 904L |
| Standards |
ASTM, GB, JIS, DIN, EN, AISI |
| Type |
ERW / Seamless |
| Section Shape |
Round / Square / Rectangular |
| Thickness (Seamless) |
0.2 mm – 12 mm |
| Thickness (Welded) |
1.2 mm – 50 mm |
| Diameter (Round) |
4 mm – 325 mm |
| Diameter (Square) |
8 × 8 mm – 300 × 300 mm |
| Diameter (Rectangular) |
10 × 20 mm – 150 × 300 mm |
| Length |
Standard 6 m or customized |
| Origin |
Foshan, China |
| Production Capacity |
15,000 tons / year |
| Sample |
Available |
| Payment Terms |
T/T, L/C, Western Union, PayPal |
| Applications |
Pipeline transport, boiler pipe, hydraulic/automobile pipe, oil & gas drilling |
KEY FEATURES
- High Strength: Excellent mechanical performance, can be hardened by heat treatment.
- Corrosion Resistance: Performs well against air, steam, water, and oxidizing acid environments.
- Machinability: Easy to process and fabricate into different shapes.
- Magnetic Properties: Naturally magnetic, unlike austenitic stainless steels.
- Heat Treatment: Improves hardness and toughness (avoid tempering between 370–560°C).
- Limitations: Plasticity and corrosion resistance decrease after welding; not ideal for harsh corrosive environments.
MATERIAL PROPERTIES
- Chromium (11.5–13.5%) forms a protective oxide film, providing resistance to oxidation and stress corrosion.
- Large thermal conductivity and small expansion coefficient, suitable for high/low temperature use.
- Can contain trace amounts of Mo, Ti, Nb for improved stability.
- AOD/VOD refining technology reduces impurities (C, N), enhancing performance.
APPLICATION
- Boiler tubes and heat exchangers
- Petroleum and natural gas pipelines
- Hydraulic and automobile components
- Pump shafts, valve parts, turbine blades
- General engineering and structural parts requiring high strength + moderate corrosion resistance
