ASTM A106 Seamless Carbon Steel Pipe – For High-Temperature & Pressure Applications

ASTM A106 Seamless Carbon Steel Pipe – For High-Temperature & Pressure Applications

  • 5.8 m/6 m/12 m and random length
  • ASTM A106
  • 10MM~630MM
  • hot rolled & cold rolled
  • A106
  • 30% TT in advance, 70% TT /70% LC at sight balance before shipment
  • support
  • FOB, EXW, CIF, CFR
  • carbon steel
  • Polished
  • 10 TON
  • Petroleum, Chemical

    High-quality seamless carbon steel pipes conforming to ASTM A106 standard. Designed for high-temperature and high-pressure environments in industries like oil & gas, power plants, boilers, and petrochemicals.

Inquire Online

ASTM A106 seamless carbon steel pipes are widely used in industrial piping systems for transporting fluids and gases under high temperature and pressure. These pipes are manufactured using hot-rolled or cold-drawn processes and conform to the American standard ASTM A106, covering grades A, B, and C.

Among these, Grade B is the most commonly used due to its balanced strength, weldability, and versatility. These pipes are ideal for bending, flanging, and similar forming operations, and suitable for welding.

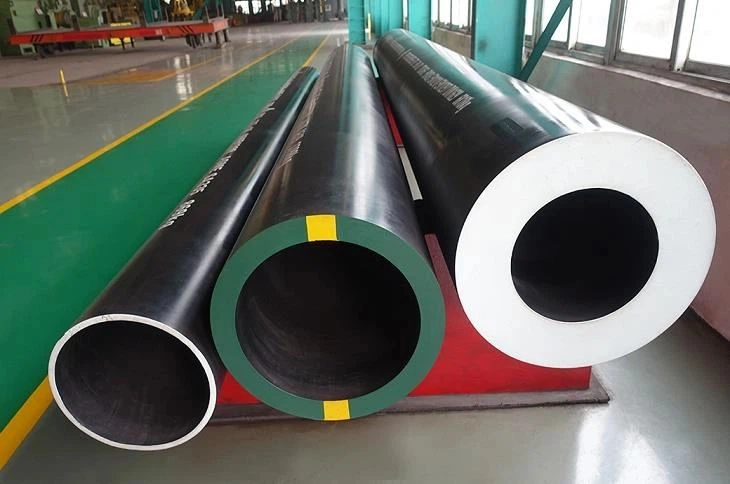

A106 seamless steel pipe

|

APPLICATION OF A106 STEEL PIPE

ASTM A106 seamless carbon steel pipes are primarily used for:

  • Oil and gas pipelines – upstream, midstream, and downstream
  • Boilers and heat exchangers – superheated steam, hot fluids
  • Refinery and petrochemical plants
  • Power generation industry – thermal & nuclear power plants
  • High-pressure piping systems
  • Shipbuilding and marine industry
  • Structural use in offshore platforms

Its excellent thermal and pressure resistance makes it ideal for use in critical systems that transport steam, oil, gas, and high-temperature fluids.

|

CHEMICAL COMPOSITION OF ASTM A106 SEAMLESS STEEL PIPE

Grade C (max%) Mn (%) P (max%) S (max%) Si (min%) Cr (max%) Cu (max%) Mo (max%) Ni (max%) V (max%)
Grade A 0.25 0.27 – 0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade B 0.30 0.29 – 1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade C 0.35 0.29 – 1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08

MECHANICAL PROPERTIES OF ASTM A106 SEAMLESS PIPE

Grade Min. Yield Strength (MPa) Min. Tensile Strength (MPa)
Grade A 205 330
Grade B 240 415
Grade C 275 485

EQUIVALENTS OF ASTM A106 SEAMLESS PIPES

Specification Mechanical Properties Grade A Grade B Grade C
ASTM A53 Tensile Strength, min (psi/MPa) 48,000 (330) 60,000 (415) –
Yield Strength, min (psi/MPa) 30,000 (205) 35,000 (240) –
ASTM A106 Tensile Strength, min (psi/MPa) 48,000 (330) 60,000 (415) 70,000 (485)
Yield Strength, min (psi/MPa) 30,000 (205) 35,000 (240) 40,000 (275)

PRODUCT SPECIFICATIONS​

PRODUCT SPECIFICATIONS​

Product Specification – ASTM A106 / ASME SA106 Seamless Steel Pipe

Available Grades – Grade A: Lower strength, more ductile   – Grade B: Balanced mechanical properties (most common)  – Grade C: Higher strength
Standard ASTM A106 / ASME SA106
Type Seamless
OD Range 1/2″ – 36″ (21.3mm – 914mm)
Wall Thickness SCH10 to SCH160 / XXS
Length 5.8m, 6m, 11.8m, or customized
Ends Plain End / Beveled End / Threaded with Coupling
Surface Options Black painted, varnished, anti-rust oil, galvanized, or bare

Chemical Composition (Typical – Grade B)

Element Content
Carbon (C) ≤ 0.30%
Manganese (Mn) 0.29 – 1.06%
Phosphorus (P) ≤ 0.035%
Sulfur (S) ≤ 0.035%
Silicon (Si) ≥ 0.10%

Mechanical Properties (Grade B)

Property Value
Tensile Strength ≥ 415 MPa
Yield Strength ≥ 240 MPa
Elongation ≥ 20%
